Product >> LED Light >> LED Stage Light >> LED 07

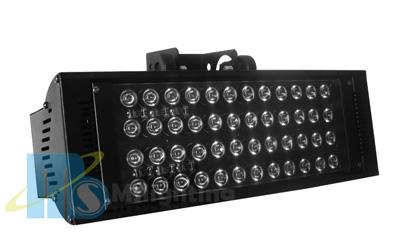

Zoom LED 07's picture

LED 07

Channels: 6
N.W: 3.5 Kg
Class: LED Stage Light LED Light

video

.:Feature:.

Item No. 1: LED 07B (48*1W)
Light Source: 48*1W RGB lamp (16R, 16B, 16G)
LED current: 320mA
Power Consumption: 48W
Light Projecting Distance: 20-25M
Packing Dimension: L530*W200*H280 mm
Gross Weight: 4.00 (Kg)
Item No. 2: LED 07C (48*3W)
Light Source: 48*3W RGB lamp (16R, 16B, 16G)
LED current: 680mA
Power Consumption: 160W
Light Projecting Distance:50-150M
Packing Dimension: L530*W200*H280 mm
Gross Weight: 4.00 (Kg)
Item No. 3: LED 07D: 36*3in 1 RGB
Light Source: 36*3in1
LED current: 680mA
Power Consumption: 160W
Light Projecting Distance:50-150M
Packing Dimension: L530*W200*H280 mm
Gross Weight: 4.00 (Kg)
Item No. 4：LED 07E (36*5W)
Light Source: 36*5W RGB lamp (12R, 12B, 12G)
LED current: 680mA
Power Consumption: 180W
Light Projecting Distance:50-150M
Packing Dimension: L530*W200*H280 mm
Gross Weight: 4.00 (Kg)
Item No. 5: LED 07F (36*4W RGBW 4IN1 )
Light Source: 36*4W RGBW 4IN1 LED lamp
LED current: 680mA
Power Consumption: 144W
Light Projecting Distance:50-150M
Packing Dimension: L530*W200*H280 mm
Gross Weight: 4.00 (Kg)
Item No. 6: LED 07G (12*10W RGBW 4IN1 )
Light Source: 12*10W RGBW 4IN1 LED lamp
LED current: 680mA
Power Consumption: 120W
Light Projecting Distance:50-150M
Item No. 7: LED 07H (12*15W RGBWA 5IN1 )
Light Source: 12*15W RGBWA 5IN1 LED lamp
LED current: 680mA
Power Consumption: 180W
Light Projecting Distance:50-150M

Item No. 8: LED 07I (12*18W RGBWAUV 6IN1)
Light Source: 12*18W RGBWAUV 6IN1 Multi-Color LED Lamp

LED current: 680mA
Power Consumption: 216W
Light Projecting Distance:50-150M

Specification:
Housing Material: Iron
Housing Color: Black
Aperture Cover: Aluminum
Operating voltage: 90-130V AC / 176-254V AC
Power:Switch Power Supply
Control Mode: Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization
DMX Channel: 9CH/6CH
Control panel: Dip Switch
Connector: 3-PinXLR (In and Out)
LED Life Time: 80000-100,000 hours
Beam Angle: 250/300/450/600
Operating Temperature: -200C-+450C
Compatibility:
1. Color Range 16.7 million additive RGB colors; continuously variable intensity (256*256*256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: it is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, and save function
6. 6CH DMX Value
CH 1 General dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer,from dart to light)
CH 3 Green (1-255, Dimmer,from dart to light)
CH 4Blue (1-255, Dimmer,from dart to light)
CH 5 Strobe & Color change/ color gradual change open
CH 6 Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. Thermal:
Maximum ambient temperature: 400C
Maximum housing temperature: 600C
