.:Product Show:.

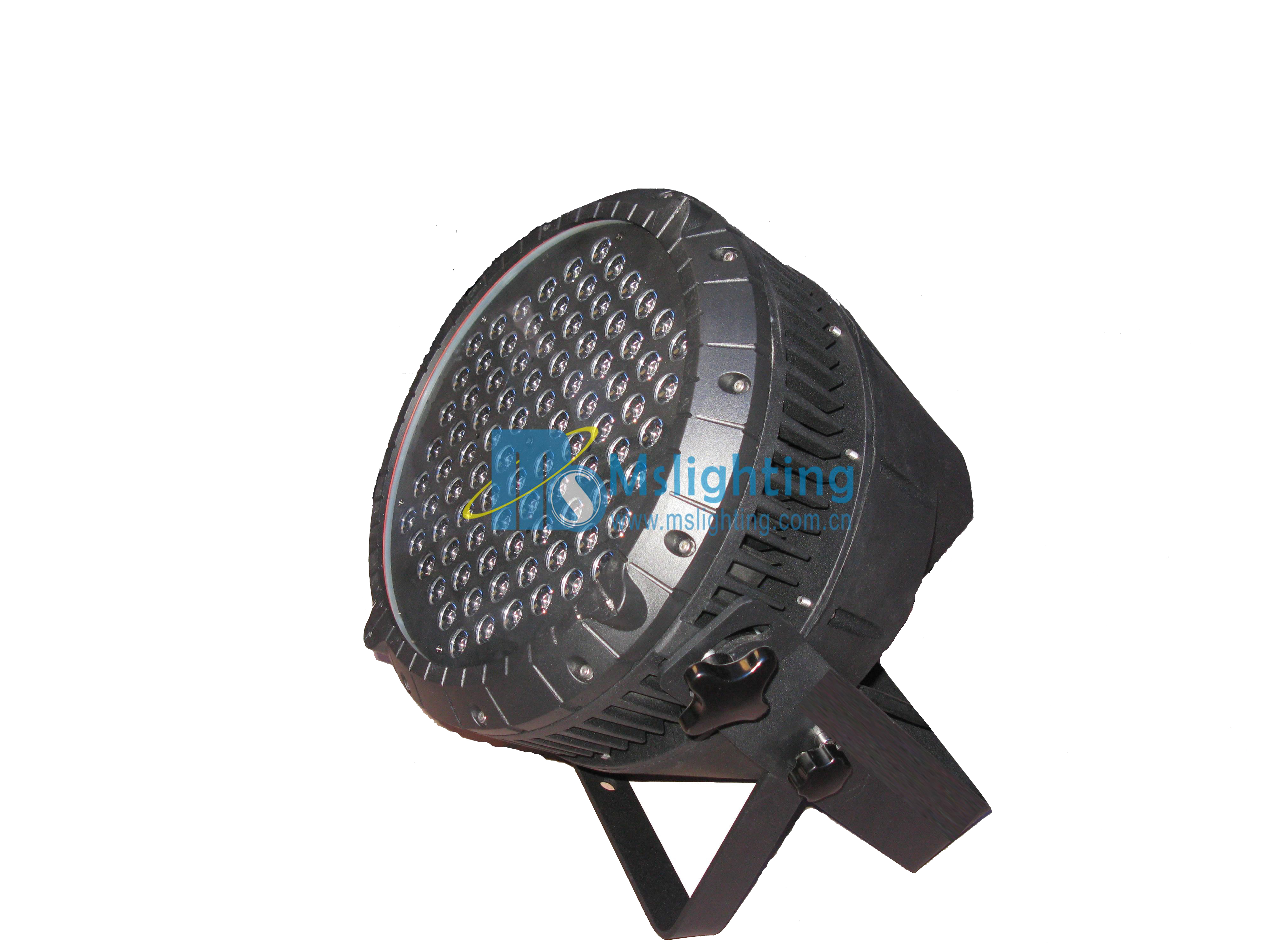

Zoom LED 1011's picture

LED 1011

Channels: 6CH/3CH (RGB), 7CH/4CH (RGBW)
Body Size:400x400x500 mm
N.W: 16.5 Kg
Class: LED Par Can LED Light
.:Feature:.

Light Source:90*5W high power RGB LED (30R, 30G, 30B) /RGBW LED current:1400mA Power Consumption:550W Light Projecting Distance:5-90M

Item NO1:LED 1011/LED 1011-1(With Wreless Control)
Light Source: 90 * 5W high power LED(30R, 30G, 30B)/
Power Consumption: 450W
Light Projecting Distance: 50-120M
Item NO2 :LED 1011A/LED 1011A-1(With Wreless Control)
Light Source: 90 * 3W high power LED(30R, 30G, 30B)/
Power Consumption: 270W
Light Projecting Distance: 50-120M
Item NO3 :LED 1011B/LED 1011B-1(With Wreless Control)
Light Source: 90 * 3W RGB 3IN1 high power LED
Power Consumption: 270W
Light Projecting Distance: 50-120M
Item NO4:LED 1011C/LED 1011C-1(With Wreless Control)
Light Source: 54*10WRGBW 4IN1 Multi-Color LED Lamp
Power Consumption: 540W
Light Projecting Distance: 50-120M
Item NO5 :LED 1011D/LED 1011D-1(With Wreless Control)
Light Source: 120 * 3W RGBW/RGB high power LED
Power Consumption: 360W
Light Projecting Distance: 50-120M
Item NO6 :LED 1011E/LED 1011E-1(With Wreless Control)
Light Source: 120 * 3W RGB 3IN1 high power LED
Power Consumption: 540W
Light Projecting Distance: 50-120M
Item NO7:LED 1011F/LED 1011F-1(With Wreless Control)
Light Source: 48*15W RGBWA 5IN1 Multi-Color LED Lamp
Power Consumption: 720W
Light Projecting Distance: 50-120M

Item NO8:LED 1011G/LED 1011G-1(With Wreless Control)
Light Source: 48*18W RGBWA 6IN1 Multi-Color LED Lamp
Power Consumption: 864W
Light Projecting Distance: 50-120M


Specification:
Housing Material: Die-casting Aluminum
Housing Color: Black (White can choose)
Aperture Cover: PMMA
Operating voltage: 90-130V AC / 176-254V AC
Control Mode: Direct DMX 512, Master/slave. Stand alone.
Sound Activity, Sound activity synchronization
DMX Channel: 6CH/3CH (RGB), 7CH/4CH (RGBW)
Control panel: Digital 4 characters alphanumeric
Connector: 3-PinXLR (In and Out)
LED Life Time: 80000-100,000 hours
Beam Angle: 60/250/300/450/600 /1200��
IP Rating: Outdoor, Waterproof, IP 65
Operating Temperature: -200C-+450C
Compatibility:
1. Color Range 16.7 million additive RGB/RGBW colors; continuously variable intensity (256*256*256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: it is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, and save function
5. 6channel Mode and 3channel Mode would change each other in every light
6. 6CH Mode DMX Value
CH 1 General dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer,from dart to light)
CH 3 Green (1-255, Dimmer,from dart to light)
CH 4Blue (1-255, Dimmer,from dart to light)
CH 5 Strobe & Color change/ color gradual change open
CH 6 Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. 3CH Mode DMX Value
CH 1 Red (1-255, Dimmer,from dart to light)
CH 2 Green (1-255, Dimmer,from dart to light)
CH 3Blue (1-255, Dimmer,from dart to light)
8. Thermal:
Maximum ambient temperature: 400C
Maximum housing temperature: 600C
