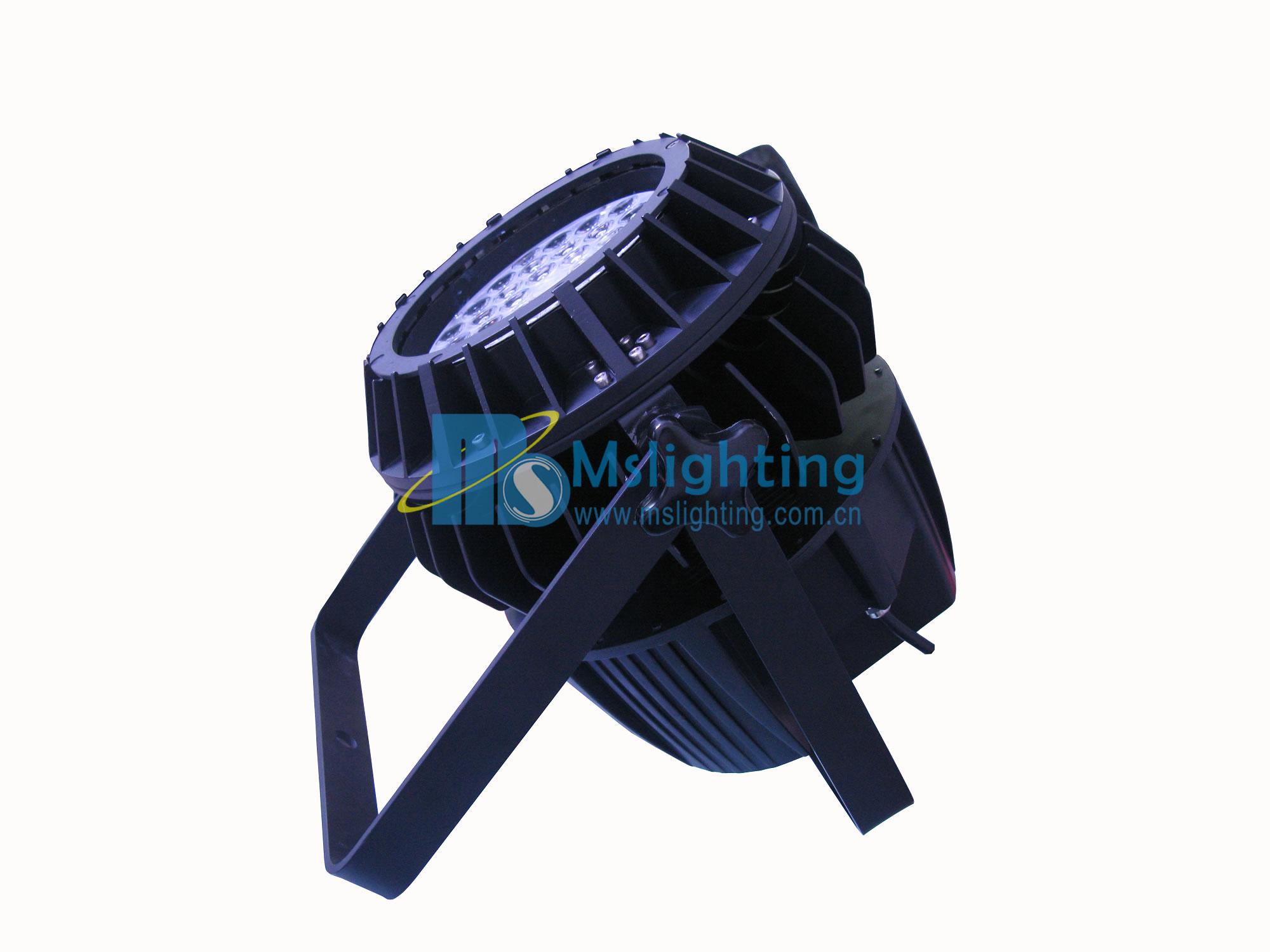

Zoom LED-3004/LED-3004-1(With Wreless Control)'s picture

LED-3004/LED-3004-1(With Wreless Control)

Class: LED Par Can LED Light
.:Feature:.

Item NO1:LED-3004/LED-3004-1(With Wreless Control)
Light Source: 36* 1W high power LED (12R, 12G, 12B,/ RGBW/RGBA
LED current: 320mA
Power Consumption: 40W
Light Projecting Distance: 5-25M
Item NO2:LED-3004A/LED-3004A-1(With Wreless Control)
Light Source: 36* 3W high power LED (12R, 12G, 12B,/ RGBW/RGBA
LED current: 680mA
Power Consumption: 120W
Light Projecting Distance: 5-35M
Item NO 3: LED-3004B/LED-3004B-1(With Wreless Control)
Light Source: 30* 3in1 high power LED
LED current: 320mA
Power Consumption: 108W
Light Projecting Distance: 5-35M
Item NO3:LED-3004B/LED-3004B-1(With Wreless Control)
Light Source: 30* 3W RGB 3IN1 high power LED
LED current: 680mA
Power Consumption: 120W
Light Projecting Distance: 5-35M
Item NO 3: LED-3004B/LED-3004B-1(With Wreless Control)
Light Source: 30* 3in1 high power LED
LED current: 320mA
Power Consumption: 108W
Light Projecting Distance: 5-35M
Item NO4:LED-3004C/LED-3004C-1(With Wreless Control)
Light Source: 54* 1W high power LED (12R,14G,14B,14W)/RGBW/RGBA
LED current: 320mA
Power Consumption: 60W
Light Projecting Distance: 5-35M
Item NO5:LED-3004D/LED-3004D-1(With Wireless Control)
Light Source: 54* 3W high power LED (12R, 14G, 14B, 14W)/RGBW/RGBA
LED current: 680mA
Power Consumption: 160W
Light Projecting Distance: 5-50M
Item NO6:LED-3004E/LED-3004E-1(With Wreless Control)
Light Source: 33* 5W high power LED (11R,11G,11B)
LED current: 1400mA
Power Consumption: 180W
Light Projecting Distance: 5-35M
Item NO7:LED-3004F/LED-3004F-1(With Wreless Control)
Light Source: 24* 4W 4IN1 RGBW/RGBA Multi-Color high power LED
LED current: 2000mA
Power Consumption: 96W
Light Projecting Distance: 5-35M
Item NO8:LED-3004G/LED-3004G-1(With Wreless Control)
Light Source: 12* 10W 4IN1 RGBW/RGBA Multi-Color high power LED
LED current: 2000mA
Power Consumption: 160W
Light Projecting Distance: 5-35M
Specification:
Housing Material: Die-casting Aluminum
Housing Color: Black/Silver White
Aperture Cover: PMMA
Operating voltage: 90-130V AC / 176-254V AC
Control Mode: Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization
DMX Channel: 7CH/4CH, 6CH/3CH
Control panel: Digital 4 characters alphanumeric
Connector: 3-PinXLR (In and Out)
LED Life Time: 80000-100,000 hours
Beam Angle: 250/300/450/600Operating Temperature: -20-+45
Compatibility:
1. Color Range 16.7 million additive RGB colors; continuously variable intensity (256*256*256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: it is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, and save function
5. 7channel Mode and 4channel Mode would change each other in every light
6. 7CH Mode DMX Value
CH 1 General dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer, from dart to light)
CH 3 Green (1-255, Dimmer, from dart to light)
CH 4 Blue (1-255, Dimmer, from dart to light)
CH 5 White (1-255, Dimmer, from dart to light)
CH 6 Strobe & Color change/ color gradual change open
CH 7 Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. 4CH Mode DMX Value
CH 1 Red (1-255, Dimmer, from dart to light)
CH 2 Green (1-255, Dimmer, from dart to light)
CH 3 Blue (1-255, Dimmer, from dart to light)
CH 4 White (1-255, Dimmer, from dart to light)

  Hits:1359   Date: 2011-12-23   PrintClose
