.:Product Show:.

Product >> Moving-Head light >> 575W >> MHS 575II

Zoom MHS 575II's picture

MHS 575IIspot

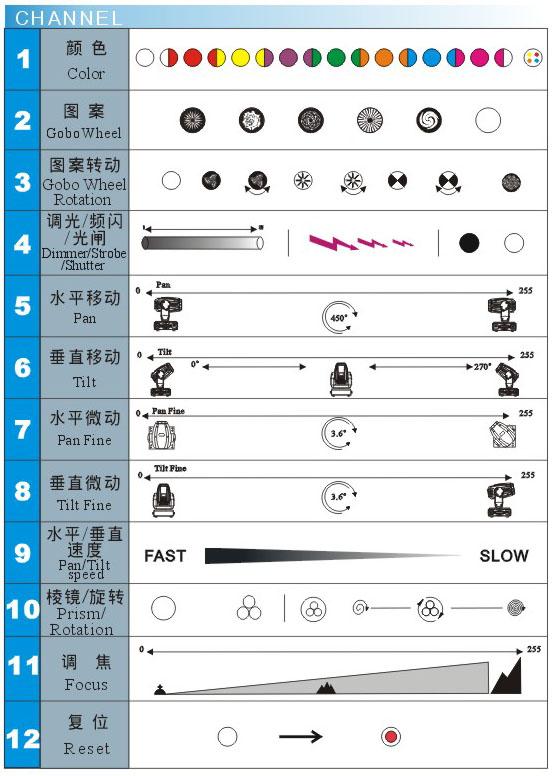

Channels: 12
Body Size:L470*W430*H590 mm
N.W: 29 Kg
Class: 575W Moving-Head light

.:Feature:.

HMI575W,12CH, moving head spot.3glass gobo.

Model: MHS 575II/MHS 575II-1(With Wreless Control)
Power: 220V 50Hz/60Hz
Lamp: HMI 575W
Power Consumption: 680W
Gobo wheel: 7 gobos + open
Color wheels: 7 colors + open
Prism wheel: 3-facet prism

Color wheel: 7 high purity over heat glass color slices(white, red, yellow, blue, green, Orange light blue, light red, rainbow effect)
Gobo wheel: 5 high dense aluminium gobos + 1 glass gobo + 1 effect gobo + open + rainbow effect
Focusing: motorized focusing
Prism: 3-facet prism, prism rotation, speed adjustable
Protection: high dense temperature-control over heat circuit
Control signal: DMX 512 12CH
Power supply: 220V 50-60Hz
Lamp: HMI / MSI 575W discharge lamp
Average life: 750 hours
Lens system: high dense quartz lens complex
Cooling and Ventilation: super power
Protection: Automatic over heat protection and anti-disturbance circuit
Housing: Fire-resistant ABS lacquered under high temperature Hanger is safe and stable, convenient for unloading, with horizontal, slant, reverse options.
