Product >> Moving-Head light >> All SmallClass >> LS-SG640/SR1600/SB4000/SRG1120/SRGB1720

Zoom LS-SG640/SR1600/SB4000/SRG1120/SRGB1720's picture

LS-SG640/SR1600/SB4000/SRG1120/SRGB1720

Channels: 8/19CH
Body Size:440*275*290 mm
N.W: 8 Kg
Class: Moving-Head light

video

.:Feature:.

Input Voltage(V): AC90-245V Lamp Power(W): 150 Control mode:: DMX 512, Music,Automatic/Master-Slave Lamp Luminous Flux(lm): 15000

Cartoon Laser Light,DMX Laser Light, Laser Light,Disco Laser Light, Club Laser Light ,

DMX Laser Light, Laser Light, Stage Light, Stage Lighting, DJ Light, Stage Effect Light

Model	Description	Configuration
LS-SG640	640mW Greeen laser spider light	G532nm-80mW big beam*8
LS-SR1600	1600mW Red laser spider light	R638nm-200mW big beam*8
LS-SB4000	4000mW Blue laser spider light	B445nm-500mW big beam*8
LS-SRG1120	1120mW Red & Green laser spider light	R638nm-200mW big beam4 / G532nm-80mW big beam4
LS-SRGB1720	1720mW Red & Green & Blue laser spider light	R638nm-200mW big beam2 / G532nm-80mW big beam4 / B445nm-500mW big beam*2

Features:

Optional RGB laser crude laser spot, with his head effect, played laser beam, the luminous efficiency is 8 thick straight rays, two groups with four rays, can swing up and down left and right, fire range up to 230, its movements are flexible, with high brightness and super laser penetration characteristics, so that the model has a super dynamic, highly infectious effect, but also to make use strobe control units, lighting and other effects in order.

Demonstration effect:

Horizontal double laser beam rotation can be moving head and output beam effect, Horizontal rotating 540°,beam Vertical rotating 120°,bobbing around with the control DMX can be strobe effect and in order effects and so on other programs.

Application: Disco, KTV, Pub, Bars, Clubs, Family party, Opera House, Advertisement, large stage, entertainment center, trade show, corporate special events, casinos, etc.

Technical parameters:

Type:	Laser Lights
Power Consumption	150W
Input Voltage(V):	90-250V ,50-60Hz
Pan/Tilt	540°/ Y1:120°,Y2:120°,
Pan/Tilt Speed:	3 selectable for High,Medium and low speed
Pan/Tilt Resolution	8/16 bit
Laser color (Emitting Color):	Red / Green / Blue ( Optional)

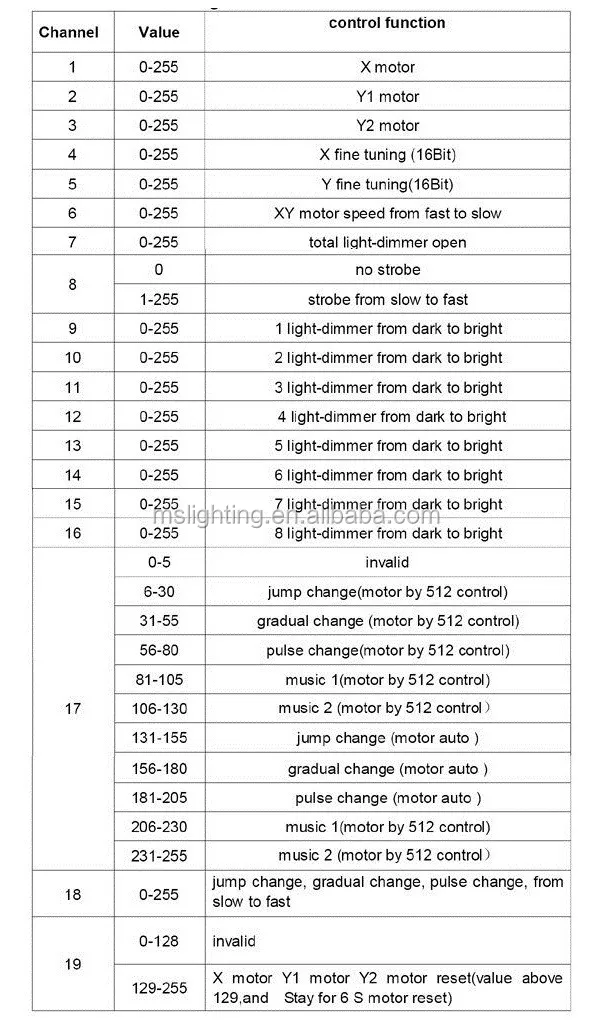

DMX 512 CH	8CH/19CH
Control mode:	DMX 512, Music(with the function of BLACK OUT),Automatic/Master-Slave (master-slave set as 19CH)
Display(Setting and Addressing) :	LCD Display
DMX Data In/Out:	XLR 3Pin
Electronic Strobe:	1-30 flashes/second
Scan Angle	Vertical 120
Motor	3pcs
warranty:	2 year
Switch Power Supply	Built-in and auto switching
Power In:	Fixed
Working Lifetime(Hour):	50000
Drive Mode:	Constant Current
Cooling:	Entire casing as heat sink plus noiseless fans
Flicker Free	Refresh Rate >1000 Hz
IP Rating:	IP33
Brand Name:	MSLighting
Shell colour	Black
Shell Material	Metal
ACcessories	power cable, DMX cable, manual.
Packing size:	4427.529cm
N.G/G.W:	8.0 /9.5KG
Working Temperature	(-15) °C +40°C
Certification:	CCC, CE, EMC, LVD, RoHS
